Illtown Sluggaz x Sugar Cayne 26inch BMX Frame

Original price was: $450.Current price is: $300.

This is the limited edition Illtown Sluggaz – Sugar Cayne 26inch BMX frame! This frame represents Vin Rock and Kay Gee’s Illtown Sluggaz brand! It’s a collaboration between Crazy Al Cayne and Vin Rock based off the Sugar Cayne 26in BMX Frame design.

Out of stock

SKU: SLUGGA26 Category: Tags: , ,

Product description

This is the limited edition Illtown Sluggaz – Sugar Cayne 26inch BMX frame! This frame represents Vin Rock and Kay Gee’s Illtown Sluggaz brand! It’s a collaboration between Crazy Al Cayne and Vin Rock based off the Sugar Cayne 26in BMX Frame design.

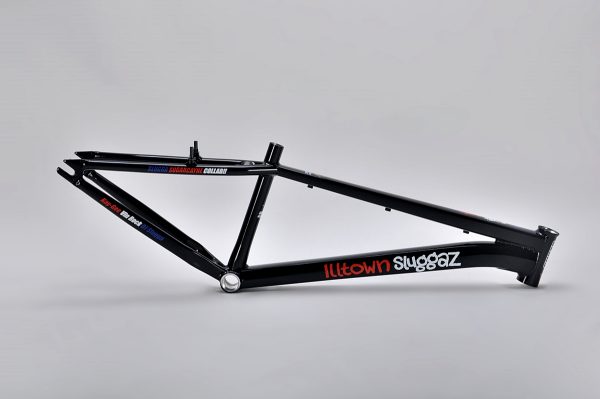

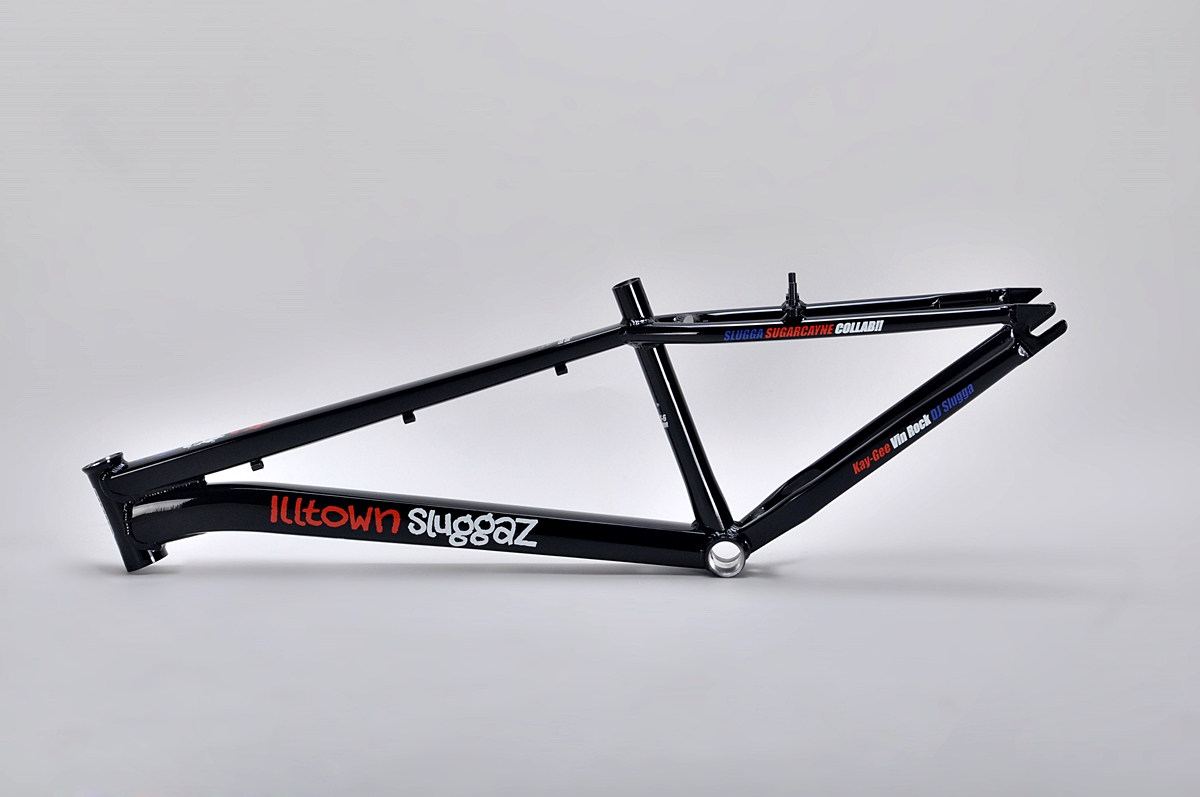

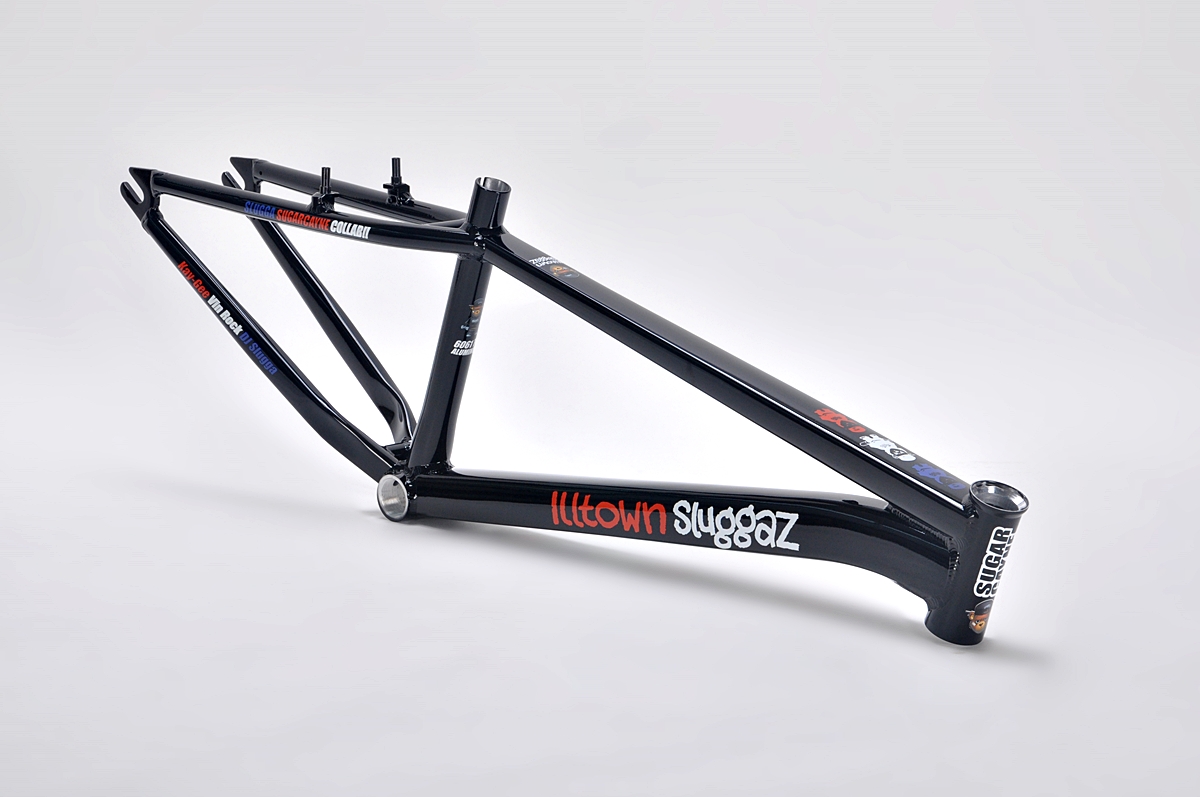

The Frame

All the frames have a special “SCBN” serial number which vary between both the Sugar Cayne By Nature and Illtown Sluggaz frames.

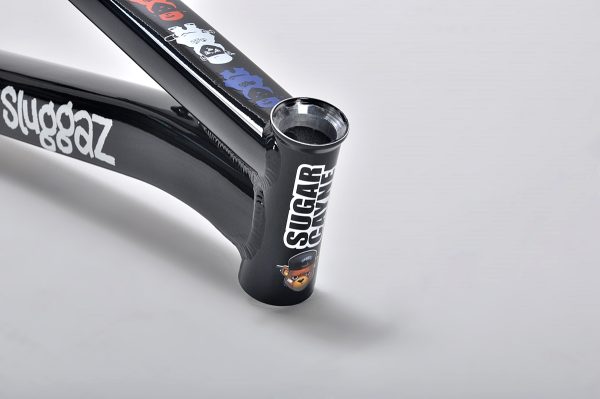

The Illtown Sluggaz frame design is the exact same frame design as the Sugar Cayne 26in frame. It has the same 6061 T-6 tubing that is used on the Sugar Cayne 20in Pro XXL frame. The downtube has the same bend as the 20in for a consistancy between frame sizes. The head tube is 1-1/8 (top and bottom), the bottom bracket is threaded (Euro) and the rear dropout is 14mm. We also taperd the seat tube where it meets the bottom bracket for added strength and less flex.

Geometry on this frame is meant for all around riding. It’s a racing frame at heart but it’s also right at home at the trails, bike parks and the streets. It can also wheelie with the best of them. We chose 14mm dropout so the frame can be able fit both 14mm axles for better peg support or 10mm axles (with adaptors) to fit lighter racing hubs.

The 26in Illtown Sluggaz frame comes in 26in and 20in Expert sizes and are limited to 50 frames each.

SUGGESTED PARTS LIST:

Below is a suggested parts list to help you complete your Illtown Sluggaz Bike Build. Parts curated by Crazy Al Cayne. The prices below may be different from their current price.

kay gee illtown sluggaz 26 bmx bikes

LIST #1:

PART MODEL RETAIL PRICE
BRAKE KIT SINZ PRO V 29.99
WHEELS Haro Sealed 189.99
CRANKS Insight RLC 159.99
CHAIN RING Insight Chainring 104 25.99
Chain Ring Bolts Insight 18.99
Seat Post Position One Pivotal 20.99
Seat Post Clamp Truth Quick Release 9.95
SEAT Insight 39.99
Forks SE Bikes Landing Gear 149.99
FREEWHEEL Position One 13.99
STEM Box Two Top Load 49.99
HANDLEBARS Answer Pro 8.0″ 69.95
BOTTOM BRACKET Insight Euro 47.99
TIRES Tioga Powerblock 27.95
TIRES Tioga PowerBlock 27.95
26″ Inner Tube QTubes Inner Tube 20″ (1) 8.99
26″ Inner Tube QTubes Inner Tube 20″ (1) 8.99
Headset Position One 25.99
Headset Spacers Truth Aluminum 14.95
Grips ODI ST Long Neck 13.85
Rear Axle Adaptors 14mm – 10mm
OutBurst 18.98
PEDALS Insight Platform Pro 72.99
Total 1048.43

Additional information

FRAME

6061 Aluminum T-6, Hydroformed tubing, tapered seat tube, 14mm dropout, V-Brake mounts, Euro Bottom Bracket, Water Transfer decals

TOP TUBE

23.2 inches

CHAIN STAY

16 inches

HEAD TUBE ANGLE

74

BOTTOM BRACKET HEIGHT

13.4 inches

SEAT TUBE ANGLE

71.2

SEAT TUBE DIAMETER

27.2mm

HEAD TUBE SIZE

1-1/8th (Top & Bottom)
