Sale!

Illtown Sluggaz 20inch Expert BMX Frame (Limited Edition)

Original price was: $450.Current price is: $300.

This is the limited edition Illtown Sluggaz – Sugar Cayne 20inch BMX frame! This frame represents Vin Rock and Kay Gee’s Illtown Sluggaz brand! It’s a collaboration between Crazy Al Cayne and Vin Rock based off the Sugar Cayne 26in BMX Frame design.

Out of stock

Product description

This is the limited edition Illtown Sluggaz – Sugar Cayne 20inch BMX frame! This frame represents Vin Rock and Kay Gee’s Illtown Sluggaz brand! It’s a collaboration between Crazy Al Cayne and Vin Rock based off the Sugar Cayne 26in BMX Frame design.

All the frames have a special “SCBN” serial number which vary between both the Sugar Cayne By Nature and Illtown Sluggaz frames.

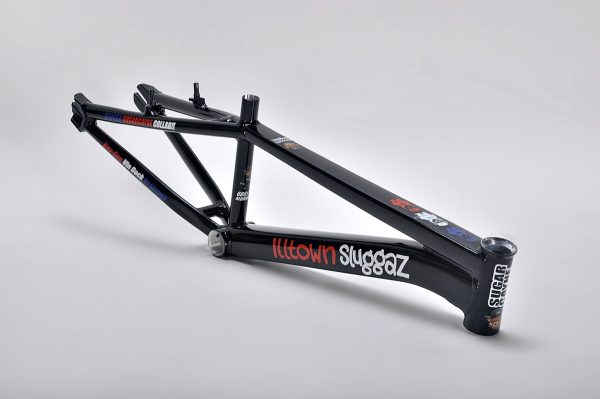

illtown sluggaz Sugar Caybe BMX Frame

The Sugar Cayne Illtown Sluggaz 20 inch expert frame design features the same 6061 T-6 hydroform tubing that is used on the Sugar Cayne 20in Pro XXL frame. The downtube has the same bend as the PRO XXL for a consistency between frame sizes. We wanted to make this frame tougher than the average expert frame. Starting with a 1-1/8 (top and bottom) head tube as oppose to a 1inch head tube. The bottom bracket is threaded (Euro) and the rear dropout is cnc machined. To save weight we used the smaller 22.2 seat tube diameter. The seat tube is also tapered where it meets the bottom bracket for added strength and less flex. This frame fits 20inch or 1-3/8th wheel sizes. If you run 1-3/8th wheels you’ll need v-brake extenders for most v-brake brands.

The 20in Sugar Cayne Illtown Sluggaz frame also comes in a 26in size and are limited to 50 frames each.

SUGGESTED PARTS LIST:

Below is a list of suggested part to complete the Sugar Cayne By Nature 20in Expert frame

PART MODEL RETAIL PRICE
CRANKS Insight RLC Crankset 159.99
PEDALS Insight Thermoplastic 44.99
BRAKE KIT SINZ BRAKE KIT 29.99
BRAKE Adaptors Elevn 31.99
CHAIN RING Insight Chainring 104 45.99
Chain Ring Bolts Insight 18.99
Seat Post Supercross 26.99
Seat Post Clamp Truth Quick Release 9.95
SEAT Elevn Expert/Pro Pivotal 29.99
STEM BOX Three Stem 49.99
HANDLEBARS Supercross Lil Fatty 74.99
BOTTOM BRACKET Insight (Blue) 47.99
TIRES Vee Speedster (White Wall) 27.95
TIRES Vee Speedster (White Wall) 27.95
20″ Inner Tub Excess Presta 8.99
20″ Inner Tube Excess Presta 8.99
Headset Truth Sealed Interated 44.95
Headset Spacers Truth Aluminum 14.95
Chain KMC Z410 14.39
FORKS Supercross SLT 169.95
WHEELS SE Racing BMX Wheelset 164.99
FREEWHEEL Excess 30 20.79
Grips ODI ST LONGNECK BMX 143MM 13.85
Total 1089.59

Additional information

Weight 6.5 lbs
Dimensions 36.61 × 6.3 × 10.23 in
FRAME

6061 Aluminum T-6, Hydroformed tubing, tapered seat tube, V-Brake mounts, Euro Bottom Bracket, Water Transfer decals

TOP TUBE

19.8 inches

CHAIN STAY

14 inches

HEAD TUBE ANGLE

73

BOTTOM BRACKET HEIGHT

11.4 inches

SEAT TUBE ANGLE

70

SEAT TUBE DIAMETER

22.2

HEAD TUBE SIZE

1-1/8th (Top & Bottom)
